5-1734592-0

50 Pos 0.5mm Pitch FPC Header, Right Angle, Gold, 250V, 500mA

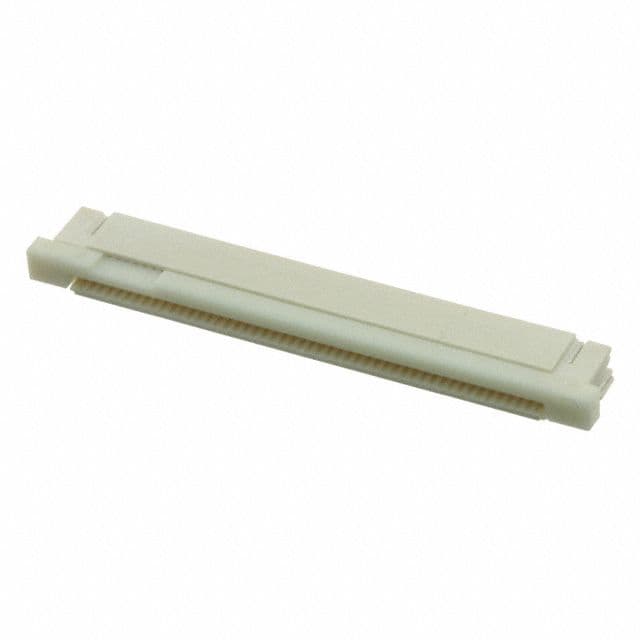

0.5mm pitch flex-to-board connector, female, right-angle surface mount with 50 positions and 50 contacts. Features gold-plated bronze contacts rated for 500mA and 250V, with a thermoplastic beige actuator. Operates between -40°C and 85°C, with a UL94 V-0 flammability rating. Includes PCB mount retention and is RoHS compliant.

Voltage Rating250V

Current Rating500mA

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 5-1734592-0 technical specifications.

General

Actuator Color	Beige
Actuator Material	Thermoplastic
Circuit Application	Signal
Connector System	Flex-to-Board
Contact Current Rating	500mA
Contact Location	Bottom
Contact Material	Bronze
Contact Plating	Gold
Current Rating	500mA
Depth	5.1mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Female
Height	2.05mm
Housing Color	Natural
Length	1.198inch
Mating Alignment	Yes (With)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	250V
Mount	Surface Mount
Number of Contacts	50
Number of Positions	50
Number of Rows	1
Operating Supply Voltage	250V
Orientation	Right Angle
Package Quantity	2000
Packaging	Tape and Reel
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pitch	0.5mm
Plating	Gold
Plating Thickness	0.025um
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Shielding	Unshielded
Shrouded	Yes (With)
Termination	SMD/SMT
Voltage Rating	250V
Width	5.1mm
Wire/Cable Type	Flat Flex
