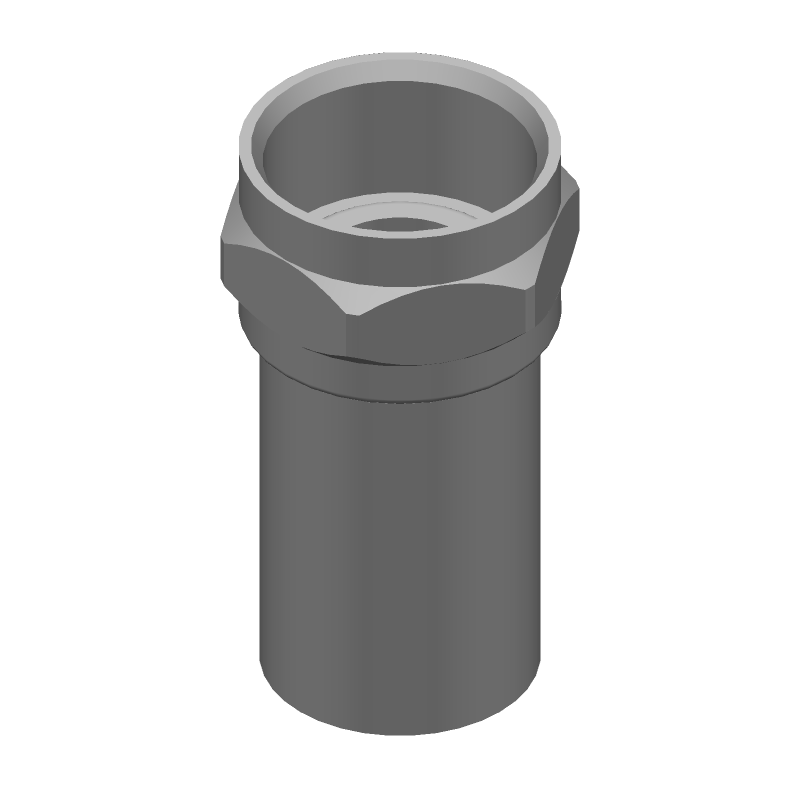

Straight, male RF coaxial connector with 75 Ohm impedance, designed for cable mounting. Features brass body with nickel plating and bronze contacts with tin plating. Operates from 0 to 2 GHz with a maximum operating temperature of 85°C. Constructed with polyethylene insulation and a silver housing color.
Frequency2GHz
Voltage Rating500V
MountingFree Hanging, Cable
PolarityNormal
Quick Jump:
Technical Specifications
TE Connectivity 5-1814822-7 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Contact Material
Bronze
Contact Plating
Tin
Depth
11mm
ELV
Compliant
Frequency
2GHz
Gender
Male
Housing Color
Silver
Impedance
75R
Insulation Material
Polyethylene
Lead Free
Not Applicable
Length
21mm
Max Frequency
1GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Ports
1
Operating Frequency
0 to 2 GHz
Orientation
Straight
Package Quantity
50
Packaging
Box
Polarity
Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
ZDC, Greenpar
Termination
TWIST ON
Voltage Rating
500V
Compliance
RoHS
Compliant
