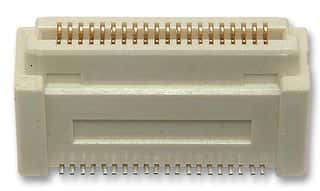

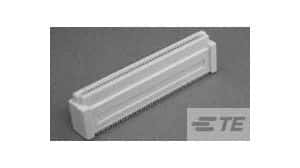

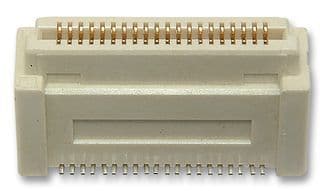

0.8mm Pitch Receptacle, 140 Pos, 2 Rows, Straight, SMD

TE Connectivity

5-5179010-6

Name: 5-5179010-6 TE Connectivity
Brand: TE Connectivity
SKU: 5-5179010-6

0.8mm Pitch Receptacle, 140 Pos, 2 Rows, Straight, SMD

140-position, 0.8mm pitch receptacle connector for board-to-board applications. Features straight, surface mount termination with a 2.4mm row spacing and a 15mm stack height. Contact current rating is 500mA, with gold, tin, and matte plating on copper alloy contacts. Insulation material is thermoplastic, with a natural housing color and UL94 V-0 flammability rating. Operating temperature range is -40°C to 125°C, with a maximum voltage rating of 100V AC.

Voltage Rating100V

Current Rating500mA

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 5-5179010-6 technical specifications.

General

Boss	Yes (With)
Connector System	Board-to-Board
Contact Current Rating	500mA
Contact Material	Copper Alloy
Contact Plating	Gold, Tin, Matte
Current Rating	500mA
Depth	6.8mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	0.512inch
Housing Color	Natural
Insulation Material	Thermoplastic
Lead Free	Lead Free
Length	61.8mm
Mated Stacking Heights	13mm
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	100V
Mount	Surface Mount
Number of Contacts	140
Number of Positions	140
Number of Rows	2
Orientation	Straight
Package Quantity	7
Packaging	Rail/Tube
PCB Mount Alignment	Yes (With)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	0.8mm
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	2.4mm
Sealable	No (Without)
Series	Free Height (FH)
Stack Height	15mm
Stackable	Yes
Termination	SMD/SMT
Voltage Rating	100V
