9-position, 2-row D-subminiature connector with straight, cable mount orientation. Features a steel shell and body, with bronze contacts plated in gold, copper, and tin for signal applications. Rated for 3A current and 250V AC, operating between -55°C and 105°C. Includes mating connector lock and solder cup termination for 20AWG wire. Compliant with RoHS and UL94 V-0 flammability rating.
Voltage Rating250V
Current Rating3A
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
TE Connectivity 5-747904-2 technical specifications.
General
Approvals
UL, CSA
Body Material
Steel
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Copper, Tin
Contact Type
Signal
Current Rating
3A
Depth
15.4mm
Dielectric Material
PBT
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
30.8mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Panel
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Straight
Package Quantity
50
Packaging
Tray
Pitch
2.77mm
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
1
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
Width
12.5mm
Wire/Cable Gauge
20AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5-747904-2 Datasheet
Download the complete datasheet for TE Connectivity 5-747904-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

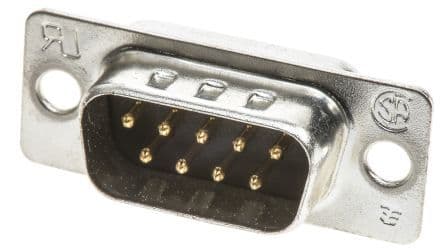

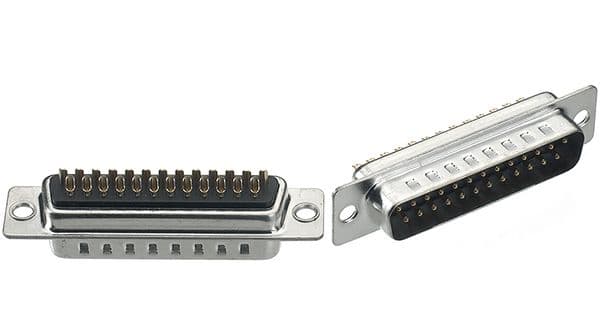

Product Images
