25-position, 2-row female D-Subminiature connector with straight, cable mount orientation. Features solder cup termination for signal applications, a metal shell, and a current rating of 3A. Operating temperature range from -55°C to 105°C with a voltage rating of 250V AC. Compliant with RoHS and UL94 V-0 flammability rating.
PackageMetal
Voltage Rating250V
Current Rating3A
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
TE Connectivity 5-747913-2 technical specifications.
General
| Approvals | UL, CSA |
| Body Material | Metal |
| Package/Case | Metal |
| Circuit Application | Signal |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold, Copper, Tin |
| Contact Type | Signal |
| Current Rating | 3A |
| Depth | 14.9mm |
| Dielectric Material | PBT |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 53.1mm |
| Material | Metal |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (AC) | 250V |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging, Panel |
| Number of Contacts | 25 |
| Number of Ports | 1 |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Tray |
| Pitch | 2.77mm |
| Plating | Tin |
| Preloaded | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | AMPLIMITE HD-20 |
| Shell Material | Steel |
| Shell Size | 3 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5-747913-2 Datasheet
Download the complete datasheet for TE Connectivity 5-747913-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

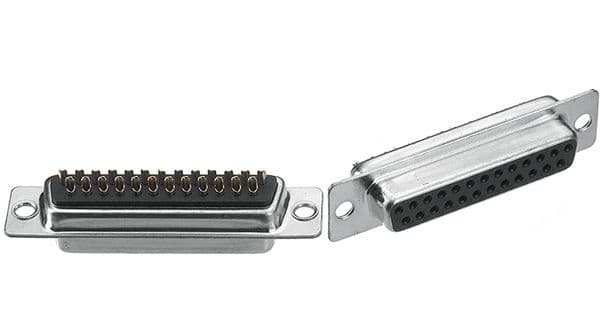

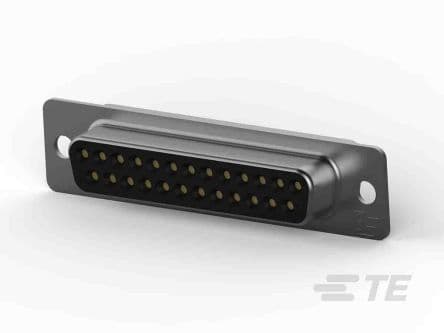

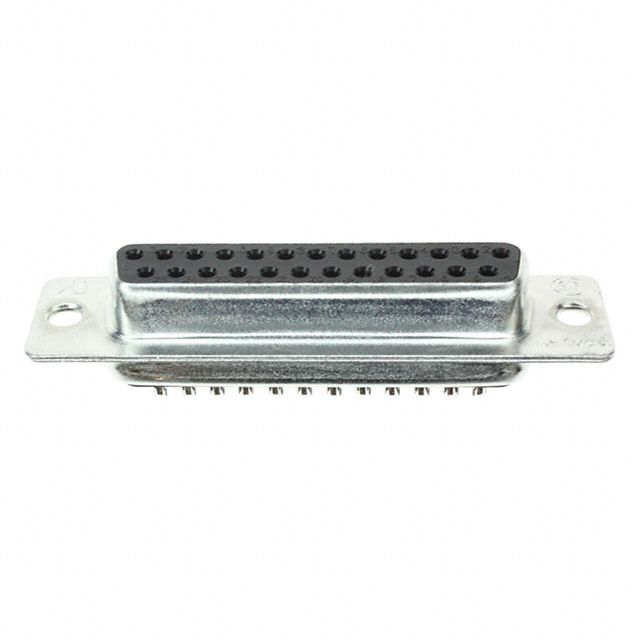

Product Images
