Multimode, duplex fiber optic adapter featuring ST connectors on both ends for straight, panel or bulkhead mounting. Constructed with a composite body and nickel-plated metal housing, this adapter operates within a temperature range of -40°C to 75°C and meets UL94 V-0 flammability standards. Designed for crimp termination, it supports wire/cable diameters up to 7.04mm and is RoHS compliant.
PackageMetal
MountingPanel, Bulkhead
Quick Jump:
Technical Specifications
TE Connectivity 501381-1 technical specifications.
General
| Body Plating | Nickel |
| Package/Case | Metal |
| Color | Silver |
| Connector Type A | ST |
| Connector Type B | ST |
| Depth | 12.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Length | 29.6mm |
| Material | Composite |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Mode | Multimode |
| Mount | Panel, Bulkhead |
| Number of Ports | 6 |
| Number of Positions | 1 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Simplex/Duplex | Duplex |
| Termination | Crimp |
| Wire/Cable Diameter | 7.04mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 501381-1 Datasheet
Download the complete datasheet for TE Connectivity 501381-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

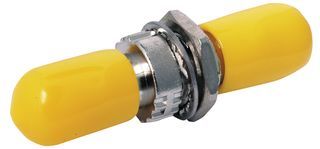

Product Images
