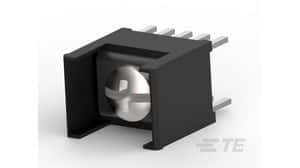

General purpose terminal block featuring a 25A current rating and a straight, vertical orientation for through-hole PCB mounting. Constructed with a nylon body and insulation, it utilizes a copper alloy and steel contact material with tin plating. This component offers 10 positions across 2 rows with a 2.54mm pitch, supporting a PCB thickness of 3.18mm and a press-fit termination method. Operating within a temperature range of -55°C to 85°C, it is UL94 V-0 flammability rated and RoHS compliant.
Current Rating25A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5055557-4 technical specifications.
General
Body Material
Nylon
Contact Current Rating
25A
Contact Material
Copper Alloy, Steel
Contact Plating
Tin
Current Rating
25A
Depth
11.43mm
ELV
Compliant
Flammability Rating
UL94 V-0
Height
13.2mm
Insulation Material
Nylon
Length
14.35mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
10
Number of Ports
1
Number of Positions
10
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Carton
PCB Mounting Orientation
Vertical
PCB Thickness
3.18mm
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Press-Fit
Compliance
RoHS
Compliant
