Female, insulated circular terminal for wire gauges 12-10 AWG. Features a copper contact with nickel plating, a PTFE insulation material with a 5.44mm insulation diameter, and a 4.34mm stud diameter suitable for M4 studs. Rated for 300V AC, this free-hanging terminal offers insulated wire support and a straight orientation.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 50845-1 technical specifications.
General
Color
Black
Contact Material
Copper
Contact Plating
Nickel
ELV
Compliant
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Diameter
5.44mm
Insulation Material
PTFE
Lead Free
Not Applicable
Length
1.083inch
Material
Copper
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
500
Packaging
Loose Piece
Plating
Nickel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIDG, Strato-Therm
Stud Diameter
4.34mm
Stud Size
M4
Termination
Circular
Thickness
0.039inch
Tongue Thickness
0.042inch
Voltage Rating (AC)
300V
Wire Gauge (Max)
10AWG
Wire Gauge (Min)
12AWG
Wire/Cable Diameter
0.214inch
Wire/Cable Gauge
10AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 50845-1 Datasheet
Download the complete datasheet for TE Connectivity 50845-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

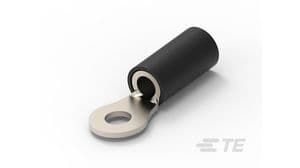

Product Images
