60-position, 2-row vertical shrouded header with 0.8mm pitch, designed for board-to-board applications. Features copper alloy contacts with gold, tin, and matte plating, rated for 500mA current. Surface mount termination with a 9mm height and 2.4mm row spacing, offering stackable capability. Operating temperature range of -40°C to 125°C, compliant with ELV and RoHS standards, and UL94 V-0 flammability rating.
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 5084613-2 technical specifications.
General
| Boss | Yes (With) |
| Connector System | Board-to-Board |
| Contact Current Rating | 500mA |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Tin, Matte |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 9mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 60 |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 450 |
| Packaging | Rail/Tube |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| Pitch | 0.8mm |
| Preloaded | Yes |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Row Spacing | 2.4mm |
| Sealable | No (Without) |
| Series | Free Height (FH) |
| Stack Height | 0.354inch |
| Stackable | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5084613-2 Datasheet
Download the complete datasheet for TE Connectivity 5084613-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

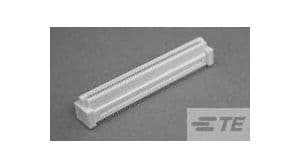

Product Images
