110-position, 2mm pitch male backplane connector with straight, through-hole mounting and press-fit termination. Features bronze contacts with gold plating, a 1.5A current rating, and a 500V voltage rating. Constructed from grey polyester housing, it operates within a -55°C to 125°C temperature range and meets UL94 V-0 flammability standards. This unshielded connector is RoHS compliant and supplied in a tube.
Voltage Rating500V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5100143-1 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 15.4mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Grey |
| Lead Free | Lead Free |
| Length | 49.9mm |
| Make First / Break Last | No |
| Material | Polyester |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 500V |
| Mount | Through Hole |
| Number of Columns | 22 |
| Number of Contacts | 110 |
| Number of Positions | 110 |
| Number of Rows | 5 |
| Orientation | Straight |
| Package Quantity | 11 |
| Packaging | Rail/Tube |
| PCB Mounting Orientation | Vertical |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 2mm |
| Series | Z-Pack |
| Shielding | Unshielded |
| Termination | Press-Fit |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5100143-1 Datasheet
Download the complete datasheet for TE Connectivity 5100143-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

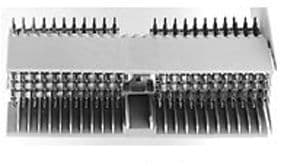

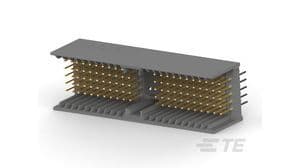

Product Images
