5102153-2

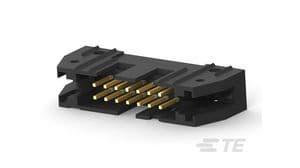

14 Pos 2.54mm Shrouded Header, Straight, Thru-Hole, 1A

14-position, 2-row shrouded header with 2.54mm pitch for wire-to-board applications. Features straight, through-hole termination with male pin contacts made of bronze, offering a 1A current rating and gold or gold-palladium plating. Operating temperature range of -65°C to 105°C with a 250V voltage rating. UL and CSA approved, with UL94 V-0 flammability rating.

Voltage Rating250V

Current Rating1A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5102153-2 technical specifications.

General

Approvals	UL, CSA
Board Standoff	No (Without)
Circuit Application	Signal
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	2.79mm
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	8.53mm
Flammability Rating	UL94 V-0
Height	0.55inch
Housing Color	Black
Insulation Color	Black
Lead Free	Lead Free
Lead Length	2.79mm
Length	1.46inch
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	14
Number of Positions	14
Number of Rows	2
Operating Supply Voltage	250V
Orientation	Straight
Package Quantity	80
Packaging	Tray
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.57mm
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	No
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
Voltage Rating	250V
