5102153-4

Datasheet

20 Pos 2.54mm Pitch Vertical Header, 1A, 250V, Gold/Tin

TE Connectivity

5102153-4

Name: 5102153-4 TE Connectivity
Brand: TE Connectivity
SKU: 5102153-4

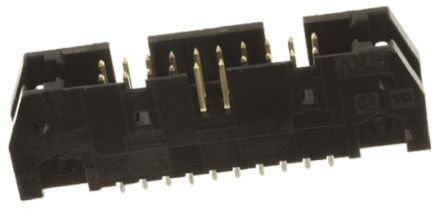

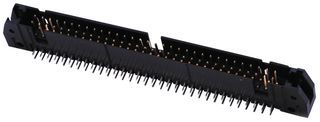

20 Pos 2.54mm Pitch Vertical Header, 1A, 250V, Gold/Tin

20-position, 2-row, 2.54mm pitch male pin header for wire-to-board applications. Features gold/tin plated bronze contacts with a 1A current rating and 250V voltage rating. Through-hole mounting with vertical PCB orientation, 8.53mm depth, and 14mm height. Black, UL94 V-0 flammability rated housing with mating alignment and retention.

Voltage Rating250V

Current Rating1A

MountingThrough Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

TE Connectivity 5102153-4 technical specifications.

General

Approvals	UL, CSA
Board Standoff	No (Without)
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Gender	Male
Contact Material	Bronze
Contact Mating Length	0.24inch
Contact Plating	Gold, Tin
Contact Post Length	2.79mm
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	8.53mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	0.55inch
Housing Color	Black
Lead Free	Lead Free
Length	1.76inch
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	20
Number of Positions	20
Number of Rows	2
Orientation	Straight
Package Quantity	70
Packaging	Tray
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.57mm
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	No
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
Voltage Rating	250V
