5102153-6

Datasheet

26 Pos 2.54mm Pitch Vertical Header, 1A, Gold/Pd, UL94 V-0

TE Connectivity

5102153-6

Name: 5102153-6 TE Connectivity
Brand: TE Connectivity
SKU: 5102153-6

Active

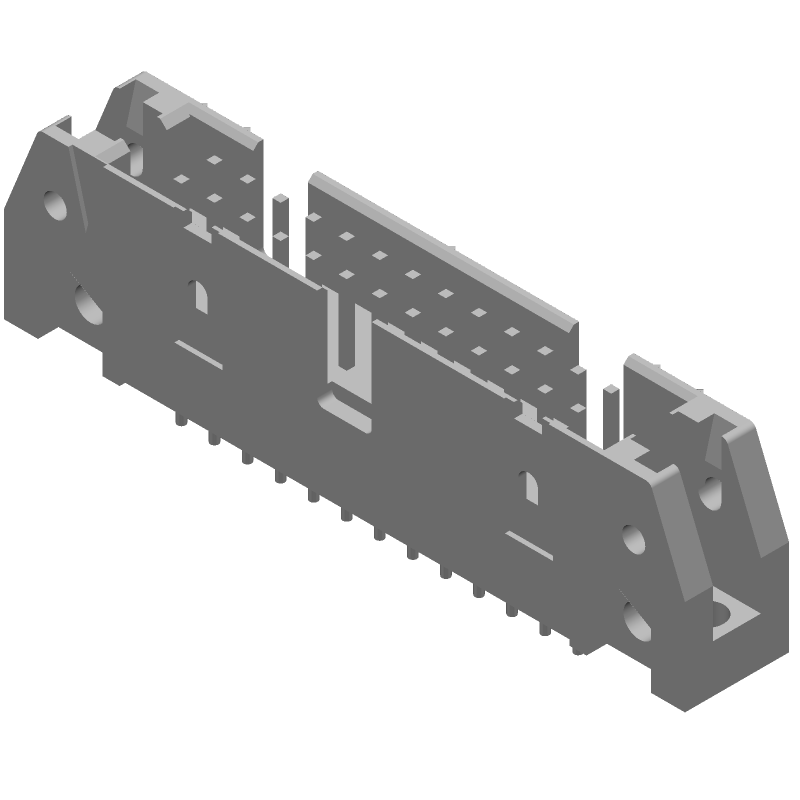

26 Pos 2.54mm Pitch Vertical Header, 1A, Gold/Pd, UL94 V-0

26-position, 2-row vertical header with a 2.54mm pitch. Features male pin contacts made of bronze with gold or gold-palladium mating finish and gold/tin plating. Rated for 1A current and 250V AC, operating between -65°C and 105°C. Includes mating alignment and retention, with a shrouded design. Mounts via through-hole termination.

Voltage Rating250V

Current Rating1A

MountingThrough Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Approvals	UL, CSA
Board Standoff	No (Without)
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	2.79mm
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	8.53mm
ELV	Compliant
Flammability Rating	UL94 V-0
Height	0.55inch
Housing Color	Black
Insulation Color	Black
Lead Free	Lead Free
Length	52.32mm
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	26
Number of Positions	26
Number of Rows	2
Orientation	Straight
Package Quantity	60
Packaging	Tray
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.57mm
Pitch	2.54mm
Radiation Hardening	No
RoHS Compliant	No
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
Voltage Rating	250V
