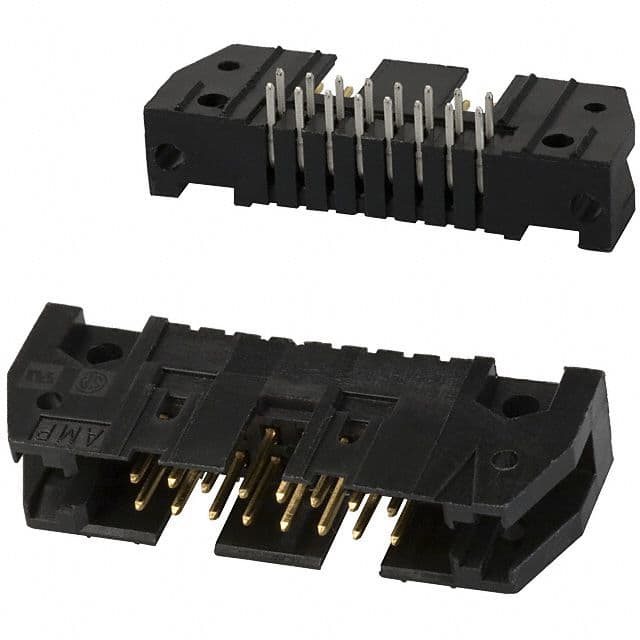

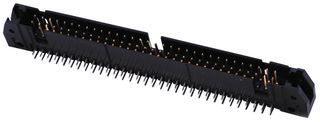

16 Pos RA Header, 2.54mm Pitch, 1A, Gold/Tin, Through Hole

TE Connectivity

5102159-3

Name: 5102159-3 TE Connectivity
Brand: TE Connectivity
SKU: 5102159-3

16 Pos RA Header, 2.54mm Pitch, 1A, Gold/Tin, Through Hole

Right angle, shrouded male pin header with 16 positions and 2 rows on a 2.54mm pitch. Features gold or gold-palladium plated bronze contacts with a 1A current rating and 2.79mm post length. Black, UL94 V-0 rated housing with a 250V AC voltage rating. Through-hole termination, designed for wire-to-board connectivity, with mating alignment and retention.

Voltage Rating250V

Current Rating1A

MountingThrough Hole

Quick Jump:

Chat with Datasheet

Technical Specifications

TE Connectivity 5102159-3 technical specifications.

General

Approvals	UL, CSA
Board Standoff	No (Without)
Color	Black
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	2.79mm
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	13.94mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	0.55inch
Housing Color	Black
Insulation Color	Black
Lead Free	Lead Free
Length	1.56inch
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	16
Number of Positions	16
Number of Rows	2
Orientation	Right Angle
Package Quantity	70
Packaging	Tray
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Right Angle
PCB Thickness	1.57mm
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	No
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
Voltage Rating	250V
Voltage Rating (AC)	250V
