5103308-7

Datasheet

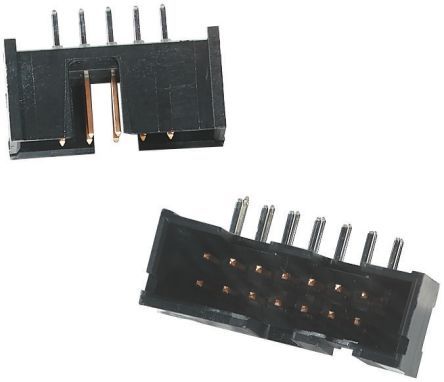

34P 2.54mm Pitch Vertical Header, 1A, Gold, UL94 V-0

TE Connectivity

5103308-7

Name: 5103308-7 TE Connectivity
Brand: TE Connectivity
SKU: 5103308-7

Active

34P 2.54mm Pitch Vertical Header, 1A, Gold, UL94 V-0

34-position, 2-row vertical header for wire-to-board applications. Features a 2.54mm pitch and 1A contact current rating with gold or gold-palladium mating contact finish. Constructed with copper alloy contacts and a black housing, this shrouded header offers a straight orientation and through-hole termination. Operating temperature range is -65°C to 105°C with a 250V AC max voltage rating.

Current Rating1A

MountingThrough Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Board Standoff	No (Without)
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Contact Post Length	0.12inch
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	9.14mm
Flammability Rating	UL94 V-0
Height	8.813mm
Housing Color	Black
Insulation Color	Black
Length	50.8mm
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	34
Number of Positions	34
Number of Rows	2
Orientation	Straight
Package Quantity	35
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
