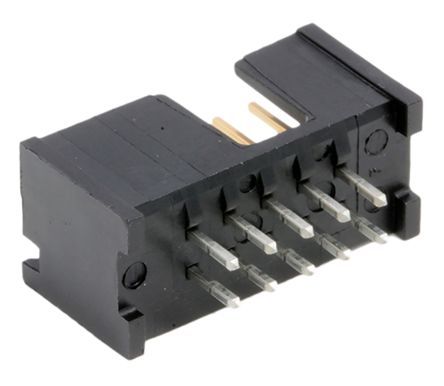

10 Pos 2.54mm Shrouded Header, Male, Straight, 1A, Gold, TH

TE Connectivity

5103309-1

Name: 5103309-1 TE Connectivity
Brand: TE Connectivity
SKU: 5103309-1

Active

10 Pos 2.54mm Shrouded Header, Male, Straight, 1A, Gold, TH

Shrouded Header, 10 positions, 2 rows, 2.54mm pitch, straight orientation, male pin contact type, copper alloy contact material with gold or gold-palladium plating. Features a thermoplastic body, UL94 V-0 flammability rating, and a 1A contact current rating. Designed for signal applications, wire-to-board connector system, with a maximum operating temperature of 105°C. Through-hole termination with a 3.048mm lead length.

Current Rating1A

MountingThrough Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Board Standoff	Yes (With)
Body Material	Thermoplastic
Circuit Application	Signal
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Contact Post Length	0.12inch
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	9.14mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	8.813mm
Housing Color	Black
Insulation Color	Black
Lead Free	Lead Free
Lead Length	3.048mm
Length	0.8inch
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	10
Number of Positions	10
Number of Rows	2
Operating Supply Voltage	250V
Orientation	Straight
Package Quantity	35
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
