5103309-2

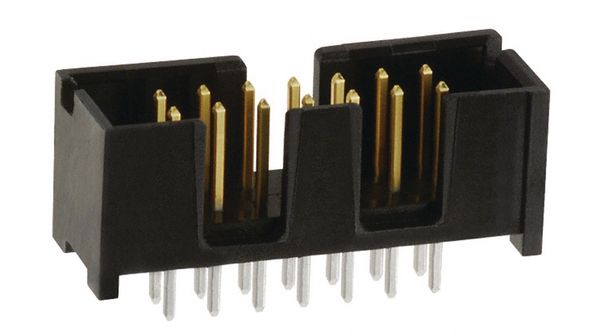

14-position shrouded header with a 2.54mm pitch, featuring straight, through-hole termination for wire-to-board applications. Constructed with copper alloy male pins, plated with gold and tin, offering a 1A current rating and a contact mating length of 0.24 inches. The black housing is UL94 V-0 flammability rated, with a maximum operating temperature of 105°C. This header includes board standoff and mating alignment features, with a lead pitch and row spacing of 2.54mm.
