24 Pos 2 Row 2.54mm Pitch Vertical Header, 1A, Gold/Pd, TH

TE Connectivity

5104338-5

Name: 5104338-5 TE Connectivity
Brand: TE Connectivity
SKU: 5104338-5

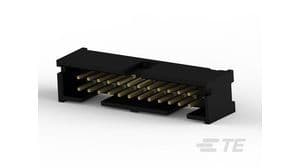

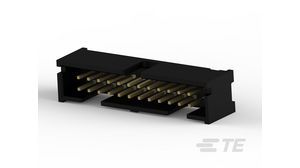

24 Pos 2 Row 2.54mm Pitch Vertical Header, 1A, Gold/Pd, TH

24-position, 2-row vertical header with a 2.54mm pitch, designed for wire-to-board connectivity. Features male pin contacts made of bronze with gold or gold-palladium mating finish and gold/tin plating, rated for 1A current. Through-hole mounting with PCB mount retention and board standoff, operating within a -65°C to 105°C temperature range. The black, UL94 V-0 rated glass-filled nylon housing ensures durability.

Current Rating1A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5104338-5 technical specifications.

General

Board Standoff	Yes (With)
Connector System	Wire-to-Board
Contact Current Rating	1A
Contact Finish - Mating	Gold or Gold-Palladium
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	0.12inch
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1A
Depth	9.14mm
Flammability Rating	UL94 V-0
Height	8.813mm
Housing Color	Black
Insulation Color	Black
Insulation Material	Glass
Length	38.1mm
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Contacts	24
Number of Positions	24
Number of Rows	2
Orientation	Straight
Package Quantity	30
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
Pitch	2.54mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	2.54mm
Series	AMP-LATCH
Shrouded	Yes (With)
Shrouded End Dimension	3.81mm
Termination	Through Hole
