TE CONNECTIVITY

5120747-2

Datasheet

50 Pos 10 Row Backplane Connector, 1.15A, Straight, Through Hole, Tin

TE Connectivity

5120747-2

Name: 5120747-2 TE Connectivity
Brand: TE Connectivity
SKU: 5120747-2

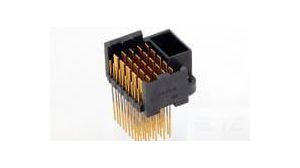

50 Pos 10 Row Backplane Connector, 1.15A, Straight, Through Hole, Tin

This straight, through-hole mounted backplane connector features a 50-position, 10-row configuration with a 0.079-inch pitch. It offers a 1.15A contact current rating and a 250V voltage rating, with male bronze contacts plated in matte tin. The connector system is board-to-board, designed for vertical PCB mounting with press-fit termination and includes mating alignment. Operating within a -65°C to 105°C temperature range, it boasts a UL94 V-0 flammability rating and is RoHS compliant.

Voltage Rating250V

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5120747-2 technical specifications.

General

Connector System	Board-to-Board
Contact Current Rating	1.15A
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Tin, Matte
Contact Post Length	3.7mm
Differential Pairs per Column	5
Differential Signaling	No
ELV	Compliant
Flammability Rating	UL94 V-0
Guide Hardware	No (Without)
Height	0.464inch
Housing Color	Black
Lead Free	Not Applicable
Length	0.489inch
Make First / Break Last	No
Mating Alignment	Yes (With)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Mount	Through Hole
Number of Columns	5
Number of Contacts	50
Number of Positions	50
Number of Rows	10
Orientation	Straight
Package Quantity	40
Packaging	Rail/Tube
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	1.4mm
Pitch	0.079inch
Preloaded	Yes
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	3.5mm
Series	Z-PACK HS3
Shrouded	Partially
Stackable	No
Tail Length	0.146inch
Termination	Press-Fit
Voltage Rating	250V
Width	24mm
