TE CONNECTIVITY

5179029-3

Datasheet

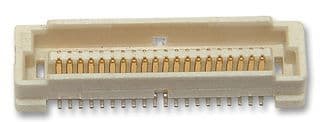

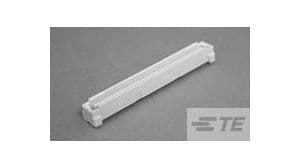

80 Pos 0.8mm Pitch Header, Straight, SMD, Gold Plated

TE Connectivity

5179029-3

Name: 5179029-3 TE Connectivity
Brand: TE Connectivity
SKU: 5179029-3

80 Pos 0.8mm Pitch Header, Straight, SMD, Gold Plated

80-position, 0.8mm pitch male header connector for board-to-board applications. Features straight, surface mount termination with a 2-row configuration and 2.4mm row spacing. Contact current rating of 500mA, with gold-plated brass contacts and tin/matte plating. Housing is natural colored thermoplastic with UL94 V-0 flammability rating. Maximum operating temperature of 125°C, with a 100V AC voltage rating. Offers mated stacking heights up to 18mm.

Voltage Rating100V

Current Rating500mA

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 5179029-3 technical specifications.

General

Boss	Yes (With)
Connector System	Board-to-Board
Contact Current Rating	500mA
Contact Material	Brass
Contact Plating	Gold, Tin, Matte
Current Rating	500mA
Depth	6mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	0.236inch
Housing Color	Natural
Insulation Material	Thermoplastic
Length	37.8mm
Mated Stacking Heights	18mm
Mating Alignment	Yes (With)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	100V
Mount	Surface Mount
Number of Contacts	80
Number of Positions	80
Number of Rows	2
Operating Supply Voltage	100V
Orientation	Straight
Package Quantity	12
Packaging	Rail/Tube
PCB Mount Alignment	Yes (With)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	0.8mm
Plating	Gold
Plating Thickness	203.2nm
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	2.4mm
Sealable	No (Without)
Series	Free Height (FH)
Stack Height	18mm
Stackable	Yes
Termination	SMD/SMT
Voltage Rating	100V
