5179030-4

Datasheet

100 Pos 0.8mm Pitch SMT Header, 2 Rows, Signal, 100V

TE Connectivity

5179030-4

Name: 5179030-4 TE Connectivity
Brand: TE Connectivity
SKU: 5179030-4

Active

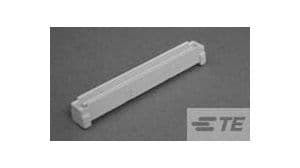

100 Pos 0.8mm Pitch SMT Header, 2 Rows, Signal, 100V

100-position, 2-row fine pitch shrouded header connector with 0.8mm pitch. Features brass contacts with gold plating (200nm) and tin/matte plating, rated for 500mA and 100V AC/DC. Surface mount (SMD/SMT) termination with straight orientation, 6mm depth, and 7mm height. Thermoplastic insulation, natural housing color, and UL94 V-0 flammability rating. Designed for board-to-board applications with a mated stacking height of 19mm.

Voltage Rating100V

Current Rating500mA

MountingSurface Mount

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Boss	Yes (With)
Circuit Application	Signal
Connector System	Board-to-Board
Contact Current Rating	500mA
Contact Material	Brass
Contact Plating	Gold, Tin, Matte
Current Rating	500mA
Depth	6mm
ELV	Compliant
Flammability Rating	UL94 V-0
Height	7mm
Housing Color	Natural
Insulation Material	Thermoplastic
Length	45.8mm
Mated Stacking Heights	19mm
Mating Alignment	Yes (With)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	100V
Mount	Surface Mount
Number of Contacts	100
Number of Positions	100
Number of Rows	2
Operating Supply Voltage	100V
Orientation	Straight
Package Quantity	10
Packaging	Rail/Tube
PCB Mount Alignment	Yes (With)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	0.8mm
Plating	Gold
Plating Thickness	200nm
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	2.4mm
Sealable	No (Without)
Series	Free Height (FH)
Stack Height	0.748inch
Stackable	Yes
Termination	SMD/SMT
Voltage Rating	100V
