TE CONNECTIVITY

5179030-5

Datasheet

0.8mm Pitch 120 Pos Female Header, 500mA, 100V, SMT

TE Connectivity

5179030-5

Name: 5179030-5 TE Connectivity
Brand: TE Connectivity
SKU: 5179030-5

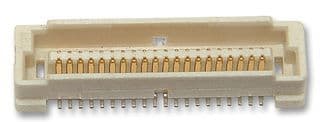

0.8mm Pitch 120 Pos Female Header, 500mA, 100V, SMT

120-position, 2-row, 0.8mm pitch female header for board-to-board applications. Features a 0.748-inch mated stacking height, 500mA contact current rating, and 100V voltage rating. Constructed with brass contacts plated in gold, tin, and matte finishes. This surface mount component offers a straight orientation, natural housing color, and a maximum operating temperature of 125°C. Compliant with RoHS and UL standards, it includes a boss for alignment and is supplied in rail/tube packaging.

Voltage Rating100V

Current Rating500mA

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 5179030-5 technical specifications.

General

Approvals	UL
Boss	Yes (With)
Color	Natural
Connector System	Board-to-Board
Contact Current Rating	500mA
Contact Material	Brass
Contact Plating	Gold, Tin, Matte
Current Rating	500mA
Depth	6mm
Flammability Rating	UL94 V-0
Gender	Female
Height	7mm
Housing Color	Natural
Length	53.8mm
Mated Stacking Heights	19mm
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	100V
Mount	Surface Mount
Number of Contacts	120
Number of Positions	120
Number of Rows	2
Orientation	Straight
Package Quantity	9
Packaging	Rail/Tube
PCB Mount Alignment	Yes (With)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	0.8mm
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	2.4mm
Sealable	No (Without)
Series	Free Height (FH)
Stack Height	0.748inch
Stackable	Yes
Termination	SMD/SMT
Voltage Rating	100V
Width	6mm
