60-position, 2-row fine pitch header with 0.8mm pitch for board-to-board applications. Features straight, surface mount termination with gold plating (200nm) and a 500mA current rating. Constructed with a natural thermoplastic housing, it offers a 6mm depth, 8mm height, and 29.8mm length, supporting mated stacking heights up to 20mm. Operates within a -40°C to 125°C temperature range and is rated for 100V. UL94 V-0 flammability rating and RoHS compliant.
Voltage Rating100V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity 5179031-2 technical specifications.
General
| Boss | Yes (With) |
| Circuit Application | Signal |
| Connector System | Board-to-Board |
| Contact Current Rating | 500mA |
| Contact Material | Brass |
| Contact Plating | Gold, Tin, Matte |
| Current Rating | 500mA |
| Depth | 6mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 8mm |
| Housing Color | Natural |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Length | 29.8mm |
| Mated Stacking Heights | 20mm |
| Mating Alignment | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 60 |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Operating Supply Voltage | 100V |
| Orientation | Straight |
| Package Quantity | 16 |
| Packaging | Rail/Tube |
| PCB Mount Alignment | Yes (With) |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| Pitch | 0.8mm |
| Plating | Gold |
| Plating Thickness | 200nm |
| Preloaded | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 2.4mm |
| Sealable | No (Without) |
| Series | Free Height (FH) |
| Stack Height | 0.787inch |
| Stackable | Yes |
| Termination | SMD/SMT |
| Voltage Rating | 100V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5179031-2 Datasheet
Download the complete datasheet for TE Connectivity 5179031-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

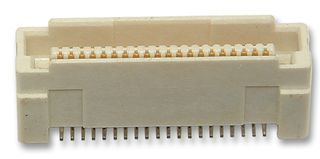

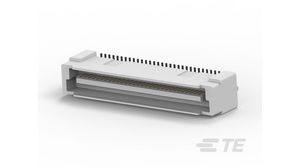

Product Images
