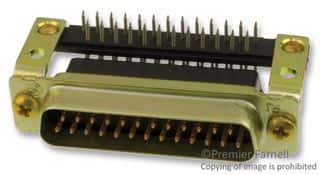

25 Pos Male D-Sub RA Connector, Gold/Tin, 6A, 125V, Through Hole

TE Connectivity

5205857-1

Name: 5205857-1 TE Connectivity
Brand: TE Connectivity
SKU: 5205857-1

25 Pos Male D-Sub RA Connector, Gold/Tin, 6A, 125V, Through Hole

25-position, 2-row standard density D-subminiature plug connector with male signal contacts. Features brass contacts with gold and tin plating, a 0.125-inch contact post length, and square contact shape. Rated for 6A current and 250V AC/DC supply voltage. Metal body and shell construction in black housing, with through-hole, right-angle PCB mounting. Compliant with RoHS and UL94 V-0 flammability rating.

PackageMetal

Voltage Rating125V

Current Rating6A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5205857-1 technical specifications.

General

Body Material	Metal
Package/Case	Metal
Color	Black
Contact Gender	Male
Contact Material	Brass
Contact Plating	Gold, Tin
Contact Post Length	0.125inch
Contact Shape	Square
Contact Type	Signal
Current Rating	6A
Depth	26.13mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Black
Lead Free	Lead Free
Length	53.03mm
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Supply Voltage (DC)	250V
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	250.25kV
Mount	Through Hole
Number of Contacts	25
Number of Ports	1
Number of Positions	25
Number of Rows	2
Orientation	Right Angle
Package Quantity	70
Packaging	Tray
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	2.36mm
Pitch	0.108inch
Plating	Zinc
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HDP-20
Shell Material	Steel
Shell Size	B
Termination	Solder
Voltage Rating	125V
Width	1.029inch
