9-position, 2-row D-Subminiature plug connector for signal applications. Features brass contacts with gold and tin plating, a PET/Polyester body, and a black housing. Through-hole mounting with vertical PCB orientation, rated for 125V and operating temperatures from -55°C to 105°C. Compliant with RoHS and UL94 V-0 flammability rating.
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5208006-2 technical specifications.
General
Approvals
UL, CSA
Body Material
PET, Polyester
Circuit Application
Signal
Color
Black
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Round
Contact Type
Signal
Depth
10.41mm
Dielectric Material
Polyester
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Lead Length
3.175mm
Length
30.89mm
Material
Plastic
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Straight
Package Quantity
17
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
2.36mm
Pitch
0.108inch
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
2.8448mm
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Size
1
Termination
Solder
Voltage Rating
125V
Width
12.09mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5208006-2 Datasheet
Download the complete datasheet for TE Connectivity 5208006-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

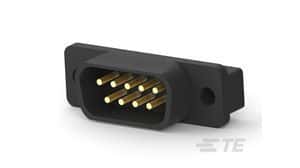

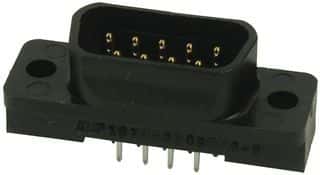

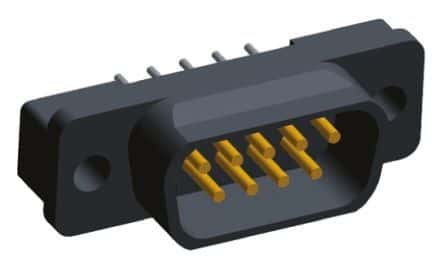

Product Images
