Shielded, right-angle backplane connector with 5 positions and 5 contacts. Features a wire-to-board connector system, through-hole solder mounting, and brass contacts with tin plating. Rated for 7.5A and 250V AC, with a maximum operating temperature of 221°C. Housing is black nylon, and the component is RoHS compliant and UL94 V-0 flammability rated.
MountingThrough Hole, Solder
Quick Jump:
Technical Specifications
TE Connectivity 5212044-1 technical specifications.
General
Approvals
CSA
Color
Black
Connector System
Wire-to-Board
Contact Current Rating
7.5A
Contact Finish - Mating
TIN
Contact Gender
Female
Contact Material
Brass
Contact Plating
Tin
Depth
15.74mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
0.82inch
Housing Color
Black
Insulation
Non-Insulated
Insulation Material
Nylon
Lead Free
Lead Free
Length
21.84mm
Mating Alignment
Yes (With)
Mating Retention
No (Without)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Through Hole, Solder
Number of Contacts
5
Number of Ports
1
Number of Positions
5
Orientation
Right Angle
Package Quantity
100
Packaging
Rail/Tube
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
2.36mm
Plating
Tin
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Selectively Loaded
Yes (With)
Shape
Circular
Shell Material
Nylon
Shell Plating
Tin
Shielding
Shielded
Strain Relief
Yes (With)
Tail Length
3.56mm
Termination
Solder
VDE Tested
No
Voltage Rating (AC)
250V
Width
0.61inch
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5212044-1 Datasheet
Download the complete datasheet for TE Connectivity 5212044-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

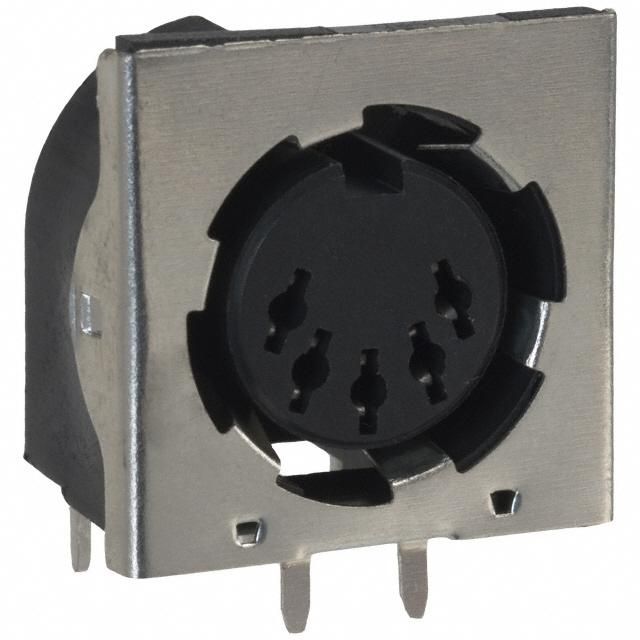

Product Images
