3-position, 5mm pitch wire housing receptacle with straight orientation for cable mounting. Features brass socket contacts and a blue nylon housing with a 15.12mm height and 0.362inch length. Includes mating alignment, connector lock, and mating retention for secure connections. Rated UL94 V-0 for flammability and RoHS compliant. Supports 14AWG wire gauge with crimp termination.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 521205-1 technical specifications.
General
Color
Blue
Contact Material
Brass
Contact Type
Socket
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
15.12mm
Housing Color
Blue
Lead Free
Not Applicable
Length
0.362inch
Material
Nylon
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Mount
Free Hanging
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
PCB Mount Retention
Without
Pitch
5mm
RoHS Compliant
Yes
Row Spacing
0.197inch
Series
Mark III, AMP
Strain Relief
No (Without)
Termination
Crimp
Wire/Cable Gauge
14AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 521205-1 Datasheet
Download the complete datasheet for TE Connectivity 521205-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

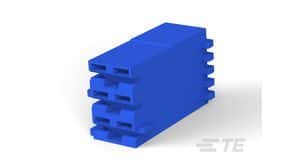

Product Images
