22-position dual-row through-hole DIP socket featuring a 2.54mm pitch and 10.16mm row spacing. Contacts are made of copper with gold plating for superior mating and a contact current rating of 3A. Designed for solder termination, this socket operates within a temperature range of -55°C to 125°C and boasts a UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 522-AG10D technical specifications.
General
| Contact Current Rating | 3A |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Post Length | 0.125inch |
| Contact Style | Screw |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Mating Alignment | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 22 |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Package Quantity | 21 |
| Packaging | Rail/Tube |
| PCB Mount Retention | Without |
| Pitch | 2.54mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Row Spacing | 10.16mm |
| Series | 500 |
| Termination | Through Hole |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 522-AG10D Datasheet
Download the complete datasheet for TE Connectivity 522-AG10D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

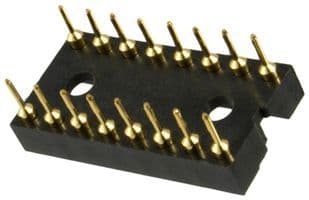

Product Images
