Male BNC connector for RF and coaxial applications, featuring a straight, free-hanging cable mount orientation. Constructed with a zinc body plated in nickel and brass contacts with gold plating, it offers a 50-ohm impedance and operates up to 4GHz. This connector supports 500 mating cycles, has a voltage rating of 500V, and a temperature range of -55°C to 85°C.
Frequency4GHz
Voltage Rating500V
MountingFree Hanging, Cable
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5221128-1 technical specifications.
General
Body Material
Zinc
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Dielectric Material
Polyethylene
Frequency
4GHz
Gender
Male
Housing Color
Silver
Impedance
50R
Insertion Loss
0.2dB
Insulation Material
Polyethylene
Length
33.53mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 4 GHz
Orientation
Straight
Package Quantity
100
Packaging
Carton
Plating
Nickel
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Crimp
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5221128-1 Datasheet
Download the complete datasheet for TE Connectivity 5221128-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

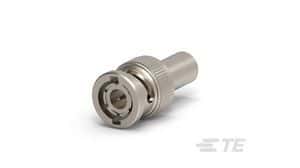

Product Images
