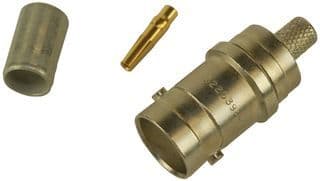

RF coaxial connector, female, straight orientation, BNC type, 50 Ohm impedance, operating frequency 0-4 GHz, 4GHz maximum frequency. Features brass body with nickel plating, copper center contact with gold plating, and PTFE dielectric. Rated for 500V, 500 mating cycles, and operating temperatures from -65°C to 165°C. Termination is crimp, suitable for RG58, A, B, C cable types.
Frequency4GHz
Voltage Rating500V
MountingFree Hanging, Cable
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5225396-1 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
ELV
Compliant
Frequency
4GHz
Gender
Female
Housing Color
Silver
Impedance
50R
Insertion Loss
0.2dB
Insulation Material
Polytetrafluoroethylene
Lead Free
Not Applicable
Length
30.48mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 4 GHz
Orientation
Straight
Package Quantity
1
Packaging
Box
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Crimp
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5225396-1 Datasheet
Download the complete datasheet for TE Connectivity 5225396-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
