RF coaxial connector, TNC plug, male gender, straight orientation, designed for cable mounting. Features brass body with nickel plating, gold-plated bronze center contact, and PTFE dielectric. Operates at frequencies up to 11 GHz with a 50 Ohm impedance and 500V voltage rating. Suitable for a wide temperature range from -65°C to 165°C, with a crimp termination.
Frequency11GHz
Voltage Rating500V
MountingFree Hanging, Cable
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5225555-6 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Dielectric Material
PTFE
ELV
Compliant
Frequency
11GHz
Gender
Male
Housing Color
Silver
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
34.93mm
Mating Cycles
500
Max Frequency
11GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Operating Frequency
0 to 11 GHz
Orientation
Straight
Package Quantity
1
Packaging
Bag
Polarity
Standard, Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Crimp
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5225555-6 Datasheet
Download the complete datasheet for TE Connectivity 5225555-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

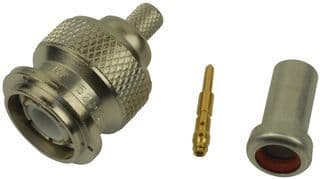

Product Images
