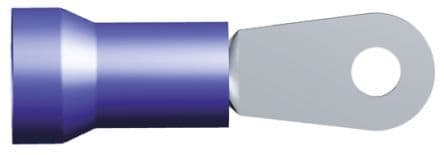

Crimp terminal with a straight, female orientation, designed for 6AWG wire. Features a copper body and contact, both plated with tin, and a blue vinyl insulation. This free-hanging terminal supports insulated wire and has a voltage rating of 600V AC. It is RoHS and ELV compliant, with a stud size of M5 and a tongue thickness of 1.14mm.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 52265 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Blue |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 11.89mm |
| ELV | Compliant |
| Gender | Female |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Color | Blue |
| Insulation Diameter | 11.07mm |
| Insulation Material | Vinyl |
| Lead Free | Lead Free |
| Length | 1.719inch |
| Material | Copper |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Plasti-Grip |
| Stud Diameter | 5mm |
| Stud Size | M5 |
| Termination | Crimp |
| Tongue Thickness | 1.14mm |
| Voltage Rating (AC) | 600V |
| Wire/Cable Gauge | 6AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 52265 Datasheet
Download the complete datasheet for TE Connectivity 52265 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
