Right-angle, female RF coaxial connector with a 50-ohm impedance, designed for through-hole PCB mounting. Features gold-plated bronze center contacts and nickel-plated zinc body for durability. Operates up to 4GHz with a voltage rating of 500V and a mating cycle of 500. Constructed with PBT and Polymethylpentene dielectric materials, suitable for temperatures from -55°C to 85°C.
Frequency4GHz
Voltage Rating500V
MountingPanel
PolarityStandard
Quick Jump:
Technical Specifications
TE Connectivity 5226978-3 technical specifications.
General
| Body Material | PBT, Polybutylene, Zinc |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 35.56mm |
| Dielectric Material | Polymethylpentene |
| ELV | Compliant |
| Frequency | 4GHz |
| Gender | Female |
| Housing Color | White |
| Impedance | 50R |
| Insulation Material | Polymethylpentene |
| Lead Free | Lead Free |
| Length | 29.21mm |
| Mating Cycles | 500 |
| Max Frequency | 4GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Operating Frequency | N/A |
| Orientation | Right Angle |
| Outside Diameter | 14.529mm |
| Package Quantity | 17 |
| Packaging | Rail/Tube |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Tail Length | 4.11mm |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5226978-3 Datasheet
Download the complete datasheet for TE Connectivity 5226978-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

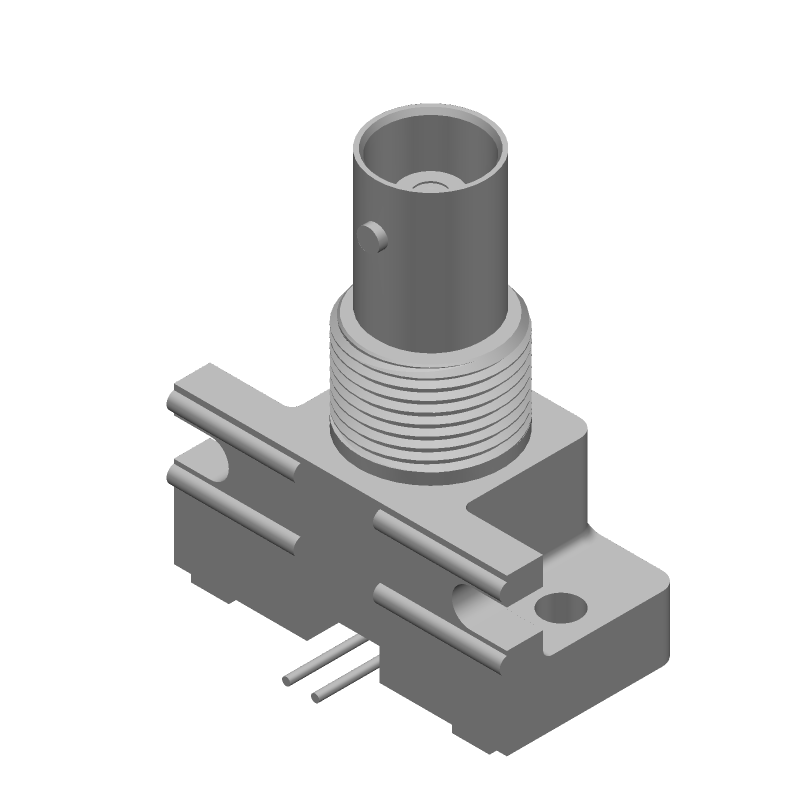

Product Images
