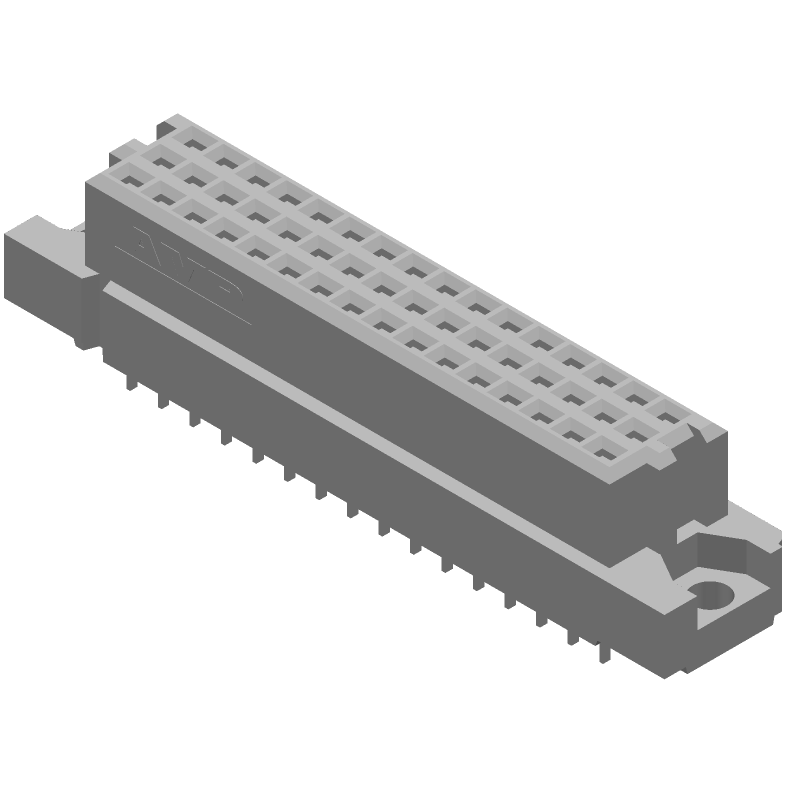

48-contact, female, straight, two-part Eurocard connector receptacle with a 2.54mm pitch. Features gold-plated bronze contacts and a glass-filled insulation material. Designed for through-hole mounting with a vertical PCB orientation, offering 3 rows and a 3.3mm contact post length. Operates within a temperature range of -55°C to 125°C with a maximum AC voltage rating of 250V. UL94 V-0 flammability rating and grey housing color.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 535070-5 technical specifications.
General
| Color | Grey |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Post Length | 3.3mm |
| Depth | 10.59mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Grey |
| Insulation Material | Glass |
| Lead Free | Contains Lead |
| Length | 53.34mm |
| Make First / Break Last | No |
| Mating Alignment | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 48 |
| Number of Positions | 48 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 30 |
| Packaging | Bulk |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| Pitch | 2.54mm |
| RoHS Compliant | No |
| Series | Eurocard |
| Tail Length | 3.3mm |
| Termination | Solder |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 535070-5 Datasheet
Download the complete datasheet for TE Connectivity 535070-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
