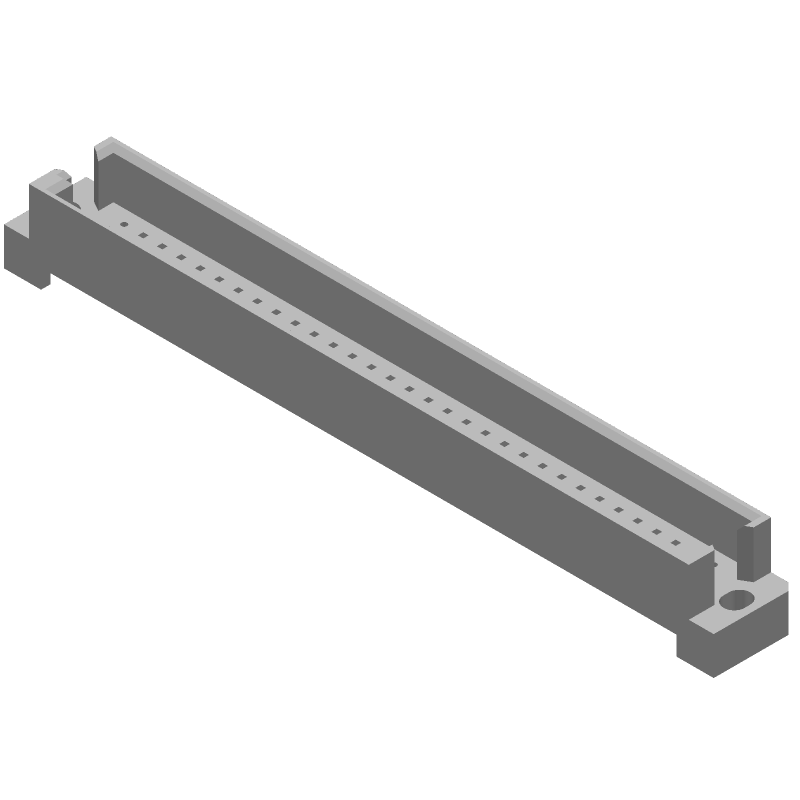

96-position, 3-row Eurocard connector shroud with straight orientation and through-hole mounting. Features gold contact plating, a polyester grey housing, and a 2.54mm pitch. Designed for 0.125-inch PCB thickness with solder termination and PCB mount retention. Compliant with RoHS and ELV standards, exhibiting UL94 V-0 flammability rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 535074-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 535074-1 technical specifications.
| Color | Grey |
| Contact Plating | Gold |
| Depth | 11.43mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Grey |
| Lead Free | Lead Free |
| Length | 94.99mm |
| Mating Alignment | No (Without) |
| Mount | Through Hole |
| Number of Columns | 32 |
| Number of Contacts | 96 |
| Number of Positions | 96 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Carton |
| PCB Mount Retention | With |
| PCB Thickness | 0.125inch |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | Eurocard |
| Termination | Solder |
| Width | 11.1mm |
| RoHS | Compliant |
