154-position, 2mm pitch male header for signal applications. Features gold-plated bronze contacts with 1.27um plating thickness, a polyester housing in grey, and a straight, vertical PCB mounting orientation. This shielded, through-hole component offers a 1.5A max current rating and operates between -55°C and 125°C. Compliant with RoHS and UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5352332-1 technical specifications.
General
| Circuit Application | Signal |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 15.4mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Grey |
| Lead Free | Not Applicable |
| Length | 49.9mm |
| Make First / Break Last | Yes |
| Material | Polyester |
| Max Current Rating | 1.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Columns | 22 |
| Number of Contacts | 154 |
| Number of Positions | 154 |
| Number of Rows | 7 |
| Orientation | Straight |
| Package Quantity | 11 |
| Packaging | Rail/Tube |
| PCB Mounting Orientation | Vertical |
| Pitch | 2mm |
| Plating | Gold |
| Plating Thickness | 1.27um |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 2mm |
| Sealable | No (Without) |
| Series | Z-Pack |
| Shielding | Shielded |
| Termination | Press-Fit |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5352332-1 Datasheet
Download the complete datasheet for TE Connectivity 5352332-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

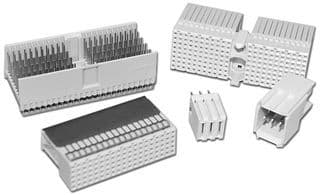

Product Images
