Shielded, right-angle modular connector with 4 ports and 8 positions per port, designed for signal applications. Features gold-plated bronze contacts with 1.27um plating thickness and a 2.54mm pitch. The black nylon housing offers a -40°C to 80°C operating temperature range and a 150V AC maximum voltage rating. This component is UL94 V-0 flammability rated and lead-free, with solder termination and a 3.56mm tail length.
Quick Jump:
Technical Specifications
TE Connectivity 5406203-3 technical specifications.
General
| Circuit Application | Signal |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 21.34mm |
| Direction | Down |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Keyed | No |
| Lead Free | Lead Free |
| Length | 61mm |
| Material | Nylon |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 150V |
| Number of Contacts | 32 |
| Number of Ports | 4 |
| Number of Positions | 8 |
| Number of Positions Loaded | 32 |
| Number of Rows | 1 |
| Number of Ways | 8 |
| Orientation | Right Angle |
| Package Quantity | 20 |
| Packaging | Tray |
| PCB Mounting Orientation | Right Angle |
| Pitch | 2.54mm |
| Plating Thickness | 1.27um |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AMP |
| Shielding | Shielded |
| Tail Length | 3.56mm |
| Termination | Solder |
| Width | 61mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5406203-3 Datasheet
Download the complete datasheet for TE Connectivity 5406203-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

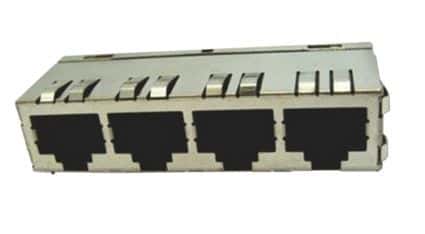

Product Images
