Shielded, right-angle 8-position female modular connector with gold-plated bronze contacts. Features a 1.5A current rating and 150V voltage rating, operating from -40°C to 80°C. Designed for PCB mounting with a 2.54mm pitch and 1.57mm PCB thickness compatibility. UL94 V-0 flammability rating and RoHS compliant.
Voltage Rating150V
Current Rating1.5A
MountingRIGHT ANGLE
Quick Jump:
Technical Specifications
TE Connectivity 5406298-1 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.5A
Depth
21.34mm
Direction
Down
Element Configuration
Single
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Keyed
No
Length
17.78mm
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Mounting Style
RIGHT ANGLE
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Positions Loaded
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
80
Packaging
Tray
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Shielding
Shielded
Tail Length
3.56mm
Termination
Solder
Voltage Rating
150V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5406298-1 Datasheet
Download the complete datasheet for TE Connectivity 5406298-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

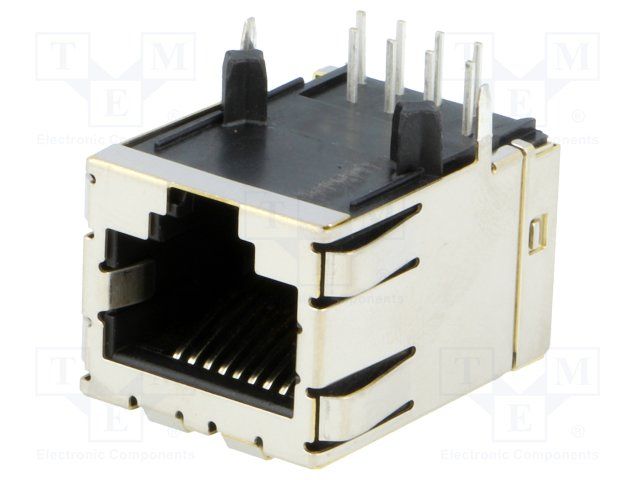

Product Images
