Right-angle, shielded modular Ethernet connector for telecom and datacom applications. Features 4 ports, 8 positions per port, and 32 contacts with gold-plated bronze contacts. Rated for 150V AC and 1.5A, with a solder termination and 2.03mm pitch. Includes integrated yellow and green LEDs for signal indication. Operating temperature range of -40°C to 85°C.
Voltage Rating150V
Current Rating1.5A
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 5406552-1 technical specifications.
General
| Circuit Application | Signal |
| Color | Yellow, Green |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 15.75mm |
| Direction | Up |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Keyed | No |
| Lead Free | Lead Free |
| Length | 64.77mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 150V |
| Mount | Panel |
| Number of Contacts | 32 |
| Number of Ports | 4 |
| Number of Positions | 8 |
| Number of Positions Loaded | 32 |
| Number of Rows | 1 |
| Number of Ways | 8 |
| Orientation | Right Angle |
| Package Quantity | 32 |
| Packaging | Carton |
| PCB Mounting Orientation | Right Angle |
| Pitch | 2.03mm |
| Plating Thickness | 1.27um |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Shielding | Shielded |
| Tail Length | 2.54mm |
| Termination | Solder |
| Voltage Rating | 150V |
| Width | 64.77mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
TE Connectivity 5406552-1 Datasheet
Download the complete datasheet for TE Connectivity 5406552-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

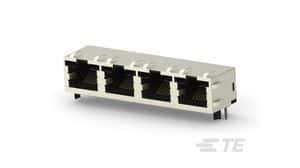

Product Images
