Right-angle PCB mount RF coaxial connector, female gender, featuring a 50 Ohm impedance and operating up to 4 GHz. Constructed with a zinc body plated in tin, it utilizes gold-plated copper center contacts and PTFE dielectric for reliable signal transmission. This connector supports 500 mating cycles and has a voltage rating of 500V, with a temperature range of -55°C to 85°C.
Frequency4GHz
Voltage Rating500V
MountingPCB, Through Hole
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5413631-2 technical specifications.
General
Body Material
Zinc
Body Plating
Tin
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
10.52mm
Dielectric Material
PTFE
ELV
Compliant
Frequency
4GHz
Gender
Female
Housing Color
Silver
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
27.89mm
Mating Cycles
500
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
PCB, Through Hole
Number of Ports
1
Number of Positions
1
Operating Frequency
0 to 4 GHz
Orientation
Right Angle
Package Quantity
28
Packaging
Carton
PCB Mount Retention
Without
PCB Mounting Orientation
Right Angle
Polarity
Standard, Normal
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Termination
Through Hole
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5413631-2 Datasheet
Download the complete datasheet for TE Connectivity 5413631-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

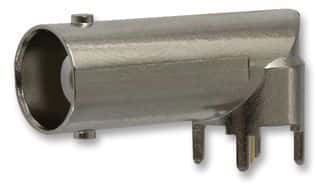

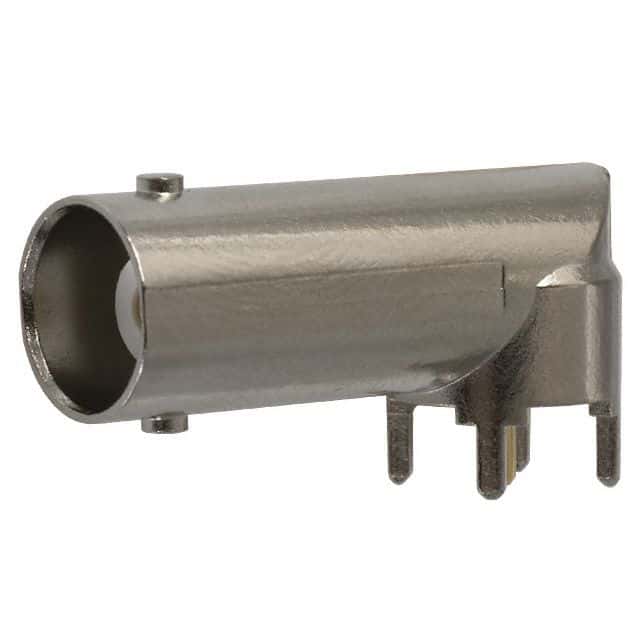

Product Images
