Vertical PCB mount BNC connector featuring a 50 Ohm impedance and a maximum operating frequency of 4GHz. This female connector utilizes a zinc body with tin plating and a PTFE dielectric. Its center contact is gold-plated copper, ensuring reliable signal transmission. Designed for through-hole termination, it offers a voltage rating of 500V and a mating cycle of 500.
Frequency4GHz
Voltage Rating500V
MountingPCB, Through Hole
PolarityStandard, Normal
Quick Jump:
Technical Specifications
TE Connectivity 5413969-2 technical specifications.
General
| Body Material | Zinc |
| Body Plating | Tin |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Depth | 11.43mm |
| Dielectric Material | PTFE |
| Frequency | 4GHz |
| Gender | Female |
| Height | 20.57mm |
| Housing Color | Silver |
| Impedance | 50R |
| Insulation Material | Teflon |
| Length | 11.43mm |
| Mating Cycles | 500 |
| Max Frequency | 4GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | PCB, Through Hole |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Operating Frequency | N/A |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Carton |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| Polarity | Standard, Normal |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Termination | Through Hole |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5413969-2 Datasheet
Download the complete datasheet for TE Connectivity 5413969-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

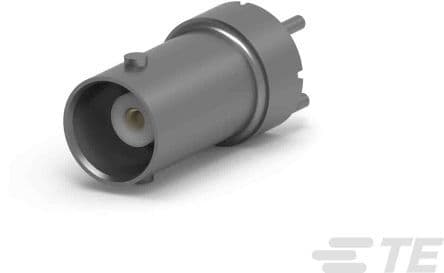

Product Images
