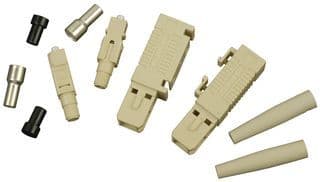

Multimode, Duplex SC Connector for 3mm cable diameter, featuring a plastic, glass, and polyethersulfone body. This free-hanging, cable-mounted connector offers a straight orientation and crimp termination. It operates within a temperature range of -40°C to 85°C and is UL94 V-0 flammability rated. The connector is RoHS compliant and includes strain relief.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 5504657-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 5504657-1 technical specifications.
| Body Material | Plastic, Glass, Polyethersulfone |
| Package/Case | 125 |
| Color | Beige |
| Depth | 23mm |
| ELV | Compliant |
| Fiber Cladding Diameter | 125um |
| Flammability Rating | UL94 V-0 |
| Housing Color | Beige |
| Lead Free | Not Applicable |
| Length | 50.3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mode | Multimode |
| Mount | Free Hanging, Cable |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Port Type | DUPLEX |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | AMP |
| Simplex/Duplex | Duplex |
| Strain Relief | Yes (With) |
| Termination | Crimp |
| Wire/Cable Diameter | 3mm |
| RoHS | Compliant |
Download the complete datasheet for TE Connectivity 5504657-1 to view detailed technical specifications.
