Modular RJ11 connector, female, 4 positions, 4 loaded contacts, 1 port, straight orientation, and vertical PCB mounting. Features bronze contacts with gold plating (1.27um), a 1.5A current rating, and a 150V AC voltage rating. Operates within a temperature range of -40°C to 70°C. Housing is black polyester with UL94 V-0 flammability rating. RoHS compliant.
Voltage Rating150V
Current Rating1.5A
Quick Jump:
Technical Specifications
TE Connectivity 5520257-2 technical specifications.
General
Approvals
UL, CSA
Circuit Application
Signal
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.5A
Depth
16.64mm
Direction
User Selectable
Element Configuration
Single
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Keyed
No
Lead Free
Lead Free
Length
14.1mm
Material
Polyester
Max Current Rating
200mA
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Mode
Singlemode
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Number of Positions Loaded
4
Number of Rows
1
Orientation
Straight
Package Quantity
2688
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
2.54mm
Plating
Gold
Plating Thickness
1.27um
Primary Type
MODULAR
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Unshielded
Termination
Solder
Voltage Rating
150V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5520257-2 Datasheet
Download the complete datasheet for TE Connectivity 5520257-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

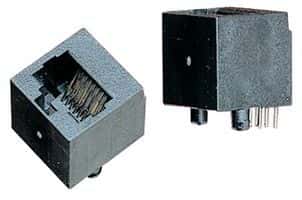

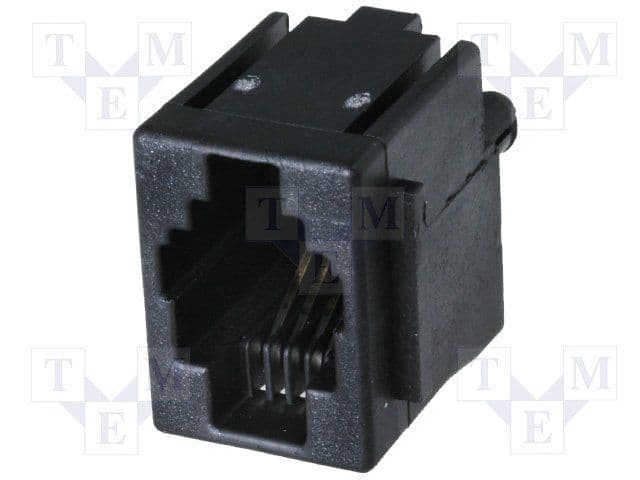

Product Images
