5520258-3

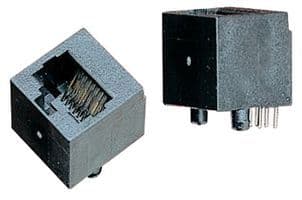

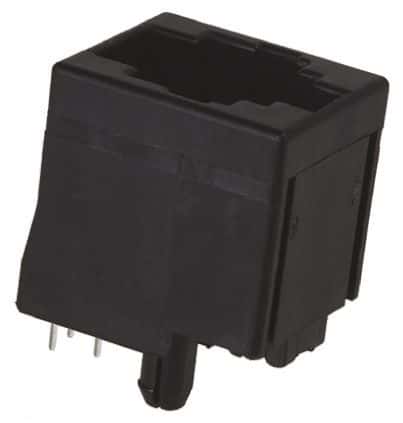

Modular RJ11 connector, female, straight, 6 positions, 6 loaded contacts, 1 port, 1 row, 2.54mm pitch, 1.27mm contact pitch, 6 terminals, signal circuit application, bronze contacts with gold plating, 1.5A current rating, 150V voltage rating, operating temperature range of -40°C to 70°C. Features UL94 V-0 flammability rating, UL and CSA approvals, lead-free construction, and RoHS compliance. Designed for vertical PCB mounting with a 1.57mm PCB thickness compatibility and 3.18mm tail length.
