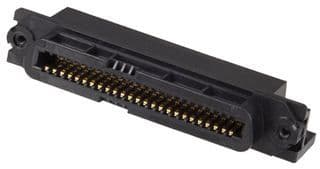

Right-angle, through-hole mounted modular connector with 50 positions and 2 rows for signal applications. Features copper alloy contacts with gold and tin plating, a 3A current rating, and 250V voltage rating. The black thermoplastic housing offers a mating connector lock and PCB mount retention, operating between -40°C and 105°C. This unshielded connector is RoHS compliant and UL94 V-0 flammability rated.
Voltage Rating250V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5552725-3 technical specifications.
General
Circuit Application
Signal
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Current Rating
3A
Depth
25.66mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
83.32mm
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
50
Number of Ports
1
Number of Positions
50
Number of Rows
2
Orientation
Right Angle
Package Quantity
40
Packaging
Tray
Panel Thickness
1.57mm
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
Pitch
2.16mm
Plating
Thermoplastic
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
CHAMP .085
Shielding
Unshielded
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5552725-3 Datasheet
Download the complete datasheet for TE Connectivity 5552725-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
