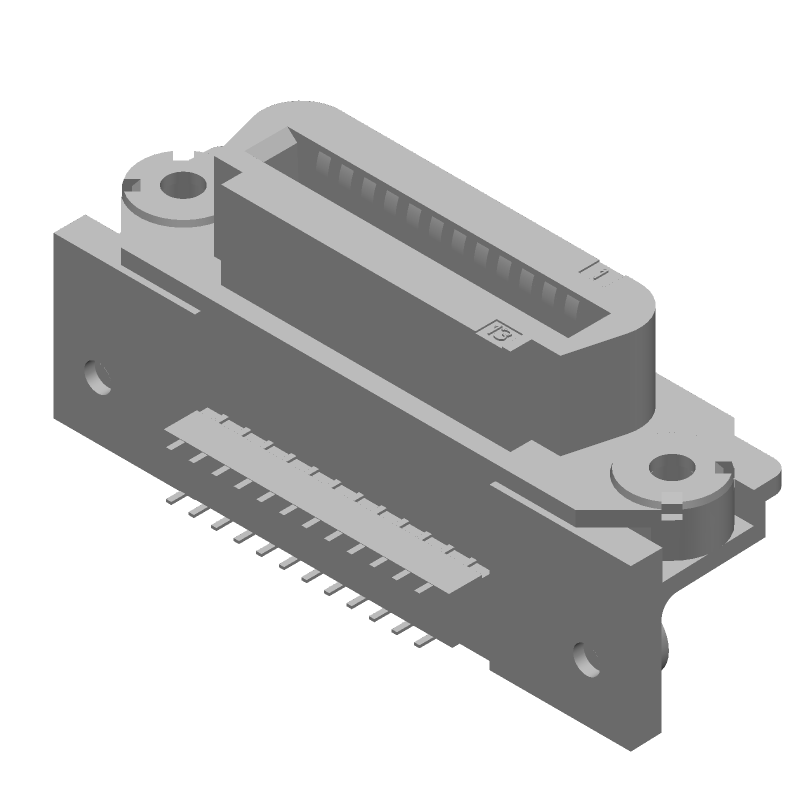

24-position, 2-row right-angle receptacle connector for panel mount applications. Features copper alloy contacts with gold and tin plating, a black thermoplastic housing, and through-hole termination for soldering. Designed for a 1.57mm panel thickness with a 2.16mm pitch. Operates within a temperature range of -40°C to 105°C and is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5552740-1 technical specifications.
General
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Depth
25.65mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Lead Free
Lead Free
Length
55.24mm
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
24
Number of Ports
1
Number of Positions
24
Number of Rows
2
Orientation
Right Angle
Package Quantity
60
Packaging
Tray
Panel Thickness
1.57mm
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
Pitch
2.16mm
Plating
Thermoplastic
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Series
CHAMP .085
Shielding
Unshielded
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5552740-1 Datasheet
Download the complete datasheet for TE Connectivity 5552740-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
