Shielded, 50-position, 2-row female receptacle connector with a 2.16mm pitch and straight orientation. Features gold and tin plated bronze contacts with a 3.43mm post length, designed for vertical through-hole mounting on PCBs. Operating temperature range of -40°C to 105°C, with a UL94 V-0 flammability rating and lead-free, RoHS compliant construction. Includes mating connector lock and PCB mount retention for secure connections.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5554216-3 technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Contact Post Length | 3.43mm |
| Depth | 0.62inch |
| ELV | Compliant |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 83.94mm |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 50 |
| Number of Ports | 1 |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 45 |
| Packaging | Tray |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Vertical |
| Pitch | 2.16mm |
| Preloaded | Yes |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CHAMP .085 |
| Shielding | Shielded |
| Termination | Solder |
| Width | 0.72inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5554216-3 Datasheet
Download the complete datasheet for TE Connectivity 5554216-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

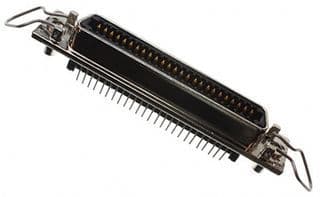

Product Images
