Right-angle modular connector, 6 positions, 6 loaded contacts, female gender, signal circuit application. Features bronze contacts with gold plating, 1.5A current rating, and 150V voltage rating. Operates from -40°C to 70°C, with UL94 V-0 flammability rating. Compliant with UL, CSA, ELV, and RoHS standards.
Voltage Rating150V
Current Rating1.5A
MountingRIGHT ANGLE
Quick Jump:
Technical Specifications
TE Connectivity 5555163-1 technical specifications.
General
| Approvals | UL, CSA |
| Circuit Application | Signal |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 18.17mm |
| Direction | Down |
| Element Configuration | Single |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Keyed | No |
| Lead Free | Lead Free |
| Length | 15.88mm |
| Max Current Rating | 200mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 150V |
| Mode | Singlemode |
| Mounting Style | RIGHT ANGLE |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Number of Positions | 6 |
| Number of Positions Loaded | 6 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 152 |
| Packaging | Tray |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57mm |
| Pitch | 2.64mm |
| Primary Type | MODULAR |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Tail Length | 3.8mm |
| Termination | Solder |
| Voltage Rating | 150V |
| Width | 15.88mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5555163-1 Datasheet
Download the complete datasheet for TE Connectivity 5555163-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

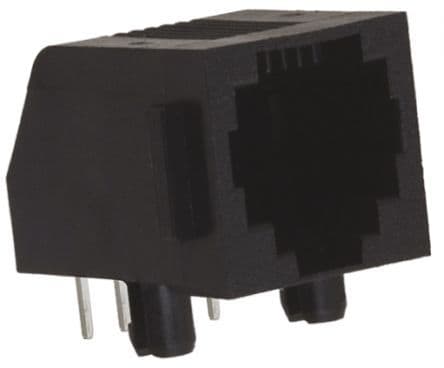

Product Images
