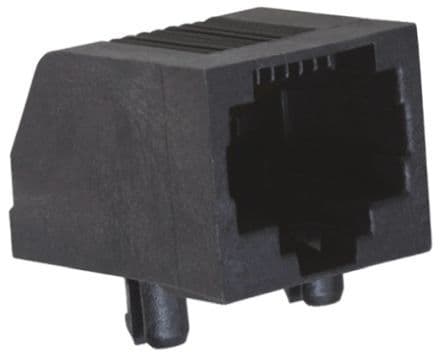

8-position, 1-port female modular connector with right-angle, SMT termination. Features gold-plated bronze contacts, a 1.5A max current rating, and a 150V AC max voltage rating. Operates within a -40°C to 85°C temperature range, with a UL94 V-0 flammability rating. Designed for telecom and datacom applications, this unshielded connector offers a 1.27mm pitch and a 1.57mm PCB thickness compatibility.
Current Rating200mA
Quick Jump:
Technical Specifications
TE Connectivity 5555764-1 technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Current Rating
200mA
Depth
20.46mm
Direction
Down
Element Configuration
Single
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Keyed
No
Lead Free
Lead Free
Length
15.37mm
Max Current Rating
1.5A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Positions Loaded
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
152
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
1.27mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Shielding
Unshielded
Tail Length
3.556mm
Termination
SMD/SMT
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5555764-1 Datasheet
Download the complete datasheet for TE Connectivity 5555764-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
