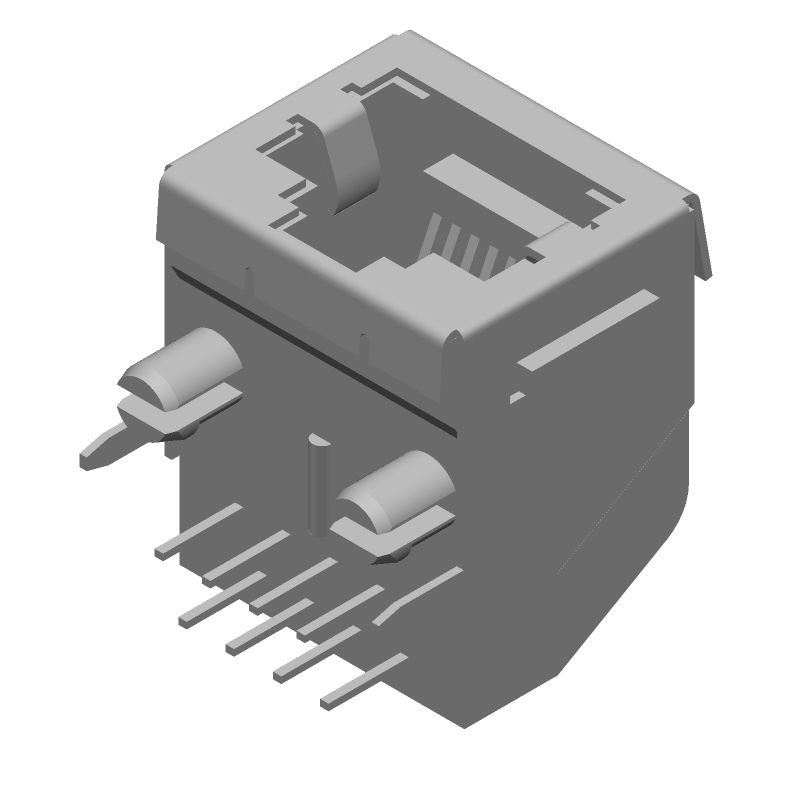

Right-angle, shielded, 8-position modular connector with a single element configuration. Features gold-plated bronze contacts and a 2.54mm pitch. Designed for panel mounting with a solder termination and a 2.79mm tail length. Operates within a temperature range of -40°C to 70°C and has a maximum voltage rating of 150V AC. Housing is black with a UL94 V-0 flammability rating.
MountingPanel
Quick Jump:
Technical Specifications
TE Connectivity 5556926-1 technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Depth
18.42mm
Direction
Down
Element Configuration
Single
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Keyed
No
Length
17.91mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Mount
Panel
Number of Contacts
8
Number of Ports
1
Number of Positions
8
Number of Positions Loaded
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
136
Packaging
Tray
PCB Mounting Orientation
Right Angle
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Shielding
Shielded
Tail Length
2.79mm
Termination
Solder
Compliance
RoHS
Compliant
